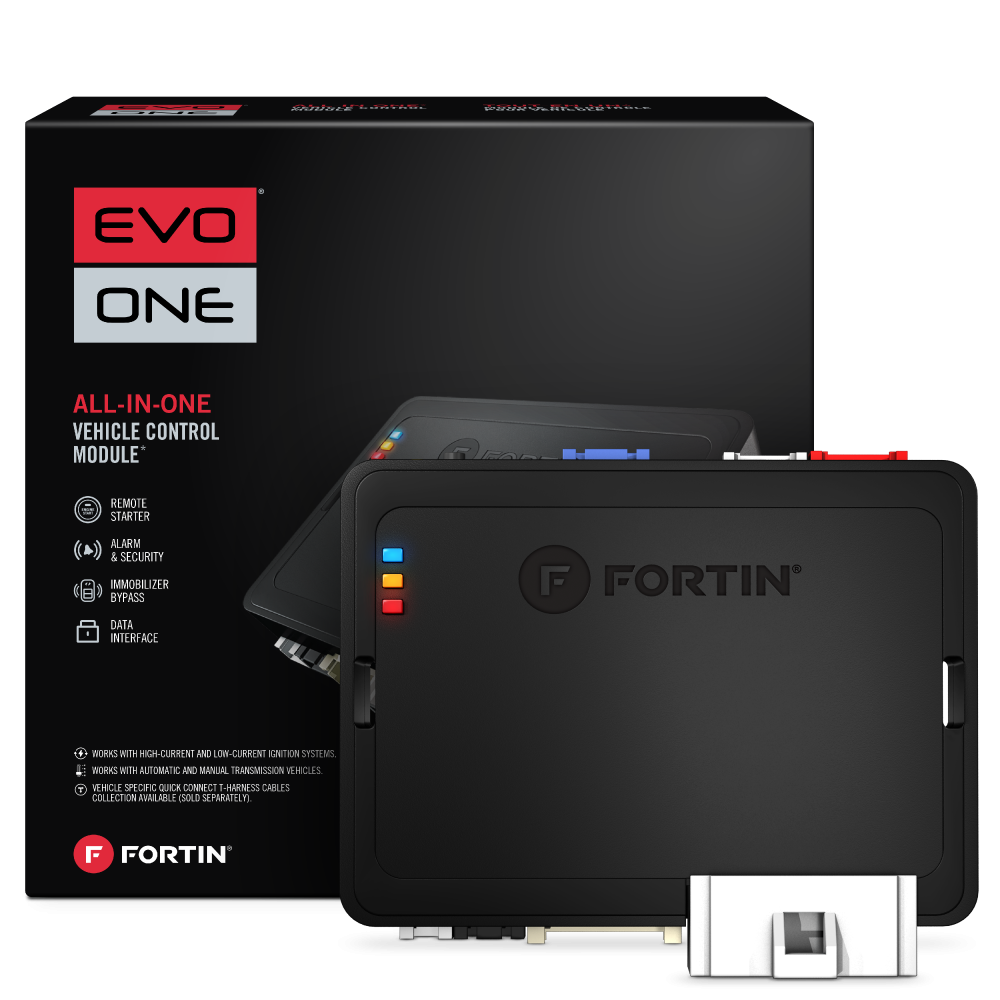

Fortin EVO-ONE All-In-One Data Bypass & Remote Start Module
$229.99
All-In-One Remote Starter, Alarm, Immobilizer Bypass and Data Interface Module.
The EVO-ONE is the ultimate and smallest ALL-IN-ONE HIGH POWER data immobilizer bypass, doorlock, security system & remote start interface. Compatible with all EVO-ALL T-Harnesses and also providing a new broad access to High Power T-Harnesses the EVO-ONE now sets the industry benchmark to a higher level.
It raises the standard of hassle-free installation convenience to a whole new level. It uses a multiple micro controller and bus architecture which redefines the word Remote Starter. This unit is much more powerful than most entry level vehicle’s BCM. EVO-ONE is an impressive state of the art unit at reachable cost.
Description
The Fortin EVO-ONE sets the industry benchmark as the ultimate high-power remote starter, alarm system, and data immobilizer bypass interface. Engineered with an advanced multi-microcontroller and bus architecture, this module delivers processing power that rivals or exceeds standard OEM Body Control Modules (BCMs)—all packaged within the smallest all-in-one footprint in its class.
- 4-in-1 Integration: Combines a remote starter, complete anti-theft security alarm, data immobilizer bypass, and door lock control into a single compact module.
- Broad Vehicle Compatibility: Native support for both high-current and low-current ignition systems across automatic and manual transmission vehicles.
- High-Power Hardware Architecture: Built with 3 SAE-certified CAN networks and 5 heavy-duty on-board relays for ultra-reliable data bus communication.
- Plug-and-Play T-Harness Support: Fully compatible with all Fortin vehicle-specific T-Harnesses, including high-power quick-connect cabling systems designed to dramatically reduce installation time.
- Hassle-Free Installation: Engineered for installer efficiency, allowing for cleaner wiring, faster turnaround times, and secure OEM-style integration.
- Device Type: All-In-One Remote Start, Data Bypass & Alarm Module
- CAN Networks: 3x SAE-Certified CAN Bus Channels
- On-Board Relays: 5x High-Power Relays
- Transmission Support: Automatic & Manual Transmissions
- Ignition Support: High-Current & Low-Current Systems
- Harness Compatibility: All Fortin EVO-ALL T-Harnesses & High-Power T-Harnesses

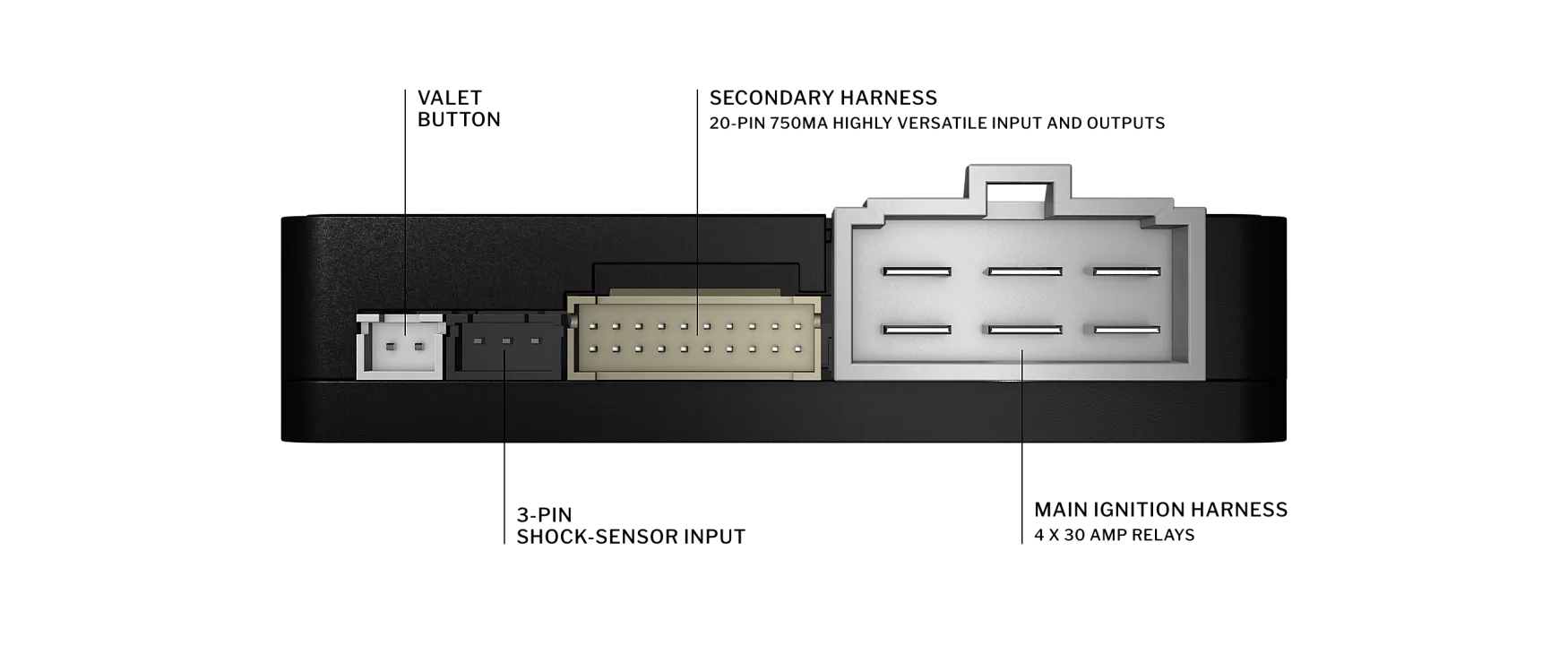

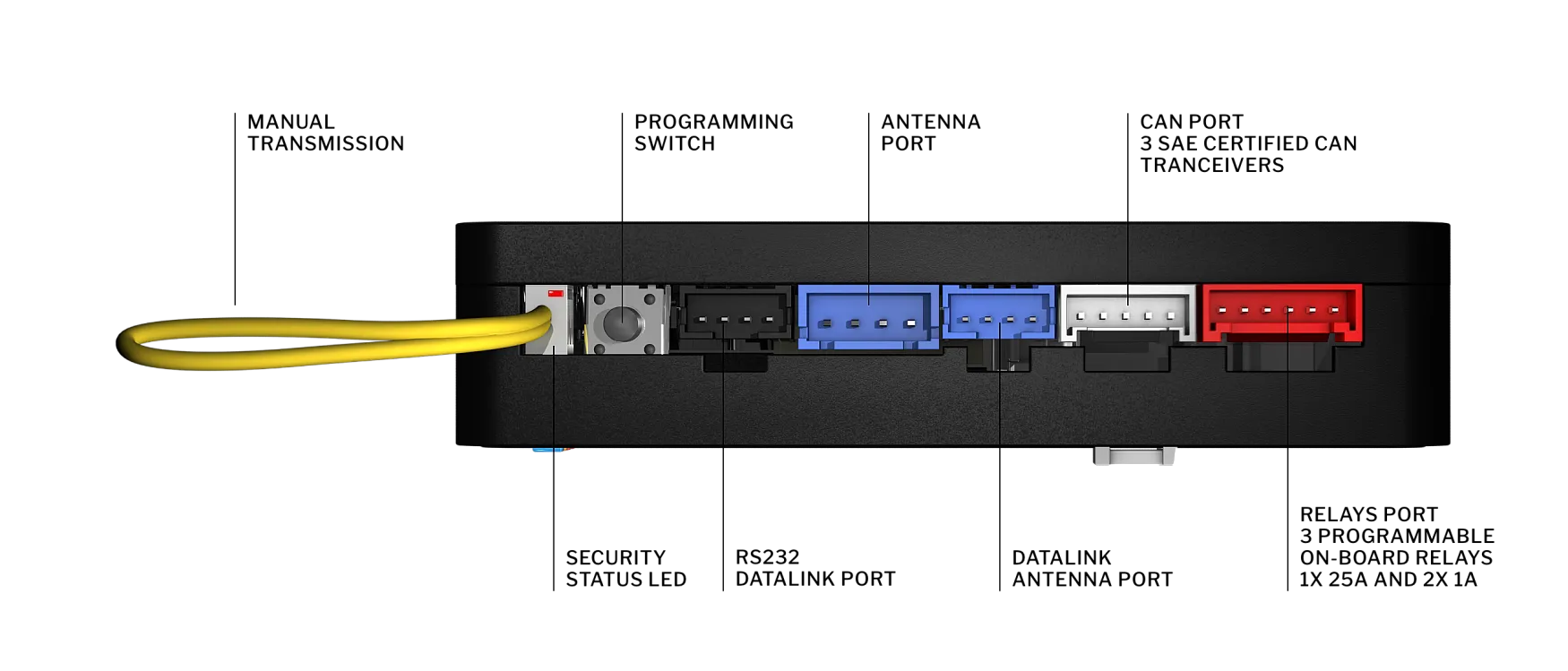

Pinout Diagram
Interactive Harness & Pin-Out Inspector
Low-current programmable inputs, trigger outputs, and immobilizer bypass lines.
| Pin # | Function | Wire Color | Type | Rating |
|---|---|---|---|---|
| A1 | (+) Foot Brake Input | Yellow | IN | - |
| A2 | (-) Parking Lights Output | Pink | OUT | 750 mA |
| A3 | (-) Trunk Release / AUX | Yellow/Black | OUT | 750 mA |
| A4 | (-) Hand Brake Input | Brown/White | IN | - |
| A5 | (-) Hood / Door Input | Pink/Black | IN | - |
| A6 | Bypass Config Line 1 | Purple/Yellow | IN/OUT | 750 mA |
| A7 | Bypass Config Line 2 | Green/White | IN/OUT | 750 mA |
| A8 | Bypass Config Line 3 | Green/Red | IN/OUT | 750 mA |
| A9 | Bypass Config Line 4 | White/Black | OUT | 2 Amp |
| A10 | Bypass Config Line 5 | Lt. Blue | IN/OUT | 750 mA |
| A11 | (+) Bypass Ignition Line | Yellow | IN | - |
| A12 | (-) Door Lock Output | Purple | OUT | 750 mA |
| A13 | (-) Door Unlock Output | Purple/White | OUT | 750 mA |
| A14 | (-) Ignition Output | Green | OUT | 750 mA |
| A15 | (-) Starter Output | White | OUT | 750 mA |
| A16 | (-) Factory Alarm Disarm | Orange | OUT | 750 mA |
| A17 | (-) Horn / Siren Trigger | Orange/Black | OUT | 2 Amp |
| A18 | (-) Ground When Running (GWR) | Dk. Blue | OUT | 750 mA |
| A19 | Bypass Config Line 6 | Red/Blue | IN | - |
| A20 | Bypass Config Line 7 | Lt. Blue/Black | IN/OUT | - |
Main high-current ignition switch connections and battery feed lines.
| Pin # | Function | Wire Color | Type | Rating |
|---|---|---|---|---|
| E1 | Main System Ground | Black | IN | Ground |
| E2 | (+) Ignition Output/Input | Pink | OUT | 30 Amp Relay |
| E3 | (+) Starter Output | Yellow | OUT | 30 Amp Relay |
| E4 | (+) Programmable Output (IGN2/ACC/PARK) | White | OUT | 30 Amp Relay |
| E5 | (+) Accessory / IGN2 Output | Orange | OUT | 30 Amp Relay |
| E6 | (+) 12V Battery Constant Power | Red | IN | Fused Input |
Direct vehicle CAN-Bus communication for digital immobilizer & status monitoring.
| Pin # | Function | Wire Color | Type | Rating |
|---|---|---|---|---|
| B1 | CAN High (High-Speed Bus) | White/Red | IN/OUT | Data |
| B2 | CAN Low (High-Speed Bus) | White/Green | IN/OUT | Data |
| B3 | LIN / SWC Single-Wire CAN | White/Blue | IN/OUT | Data |
| B4 | Extended CAN High | Blue/Red | IN/OUT | Data |
| B5 | Extended CAN Low | Blue/White | IN/OUT | Data |
Integrated 25A and 1A programmable on-board bypass relays.
| Pin # | Function | Wire Color | Type | Rating |
|---|---|---|---|---|
| D1 | Relay 1 Common / Output | Red Plug | OUT | 25 Amp |
| D2 | Relay 1 Normally Open | Red Plug | IN | 25 Amp |
| D3 | Relay 2 Output | Red Plug | OUT | 1 Amp |
| D4 | Relay 3 Output | Red Plug | OUT | 1 Amp |
| D5 | Ground Output Control | Red Plug | OUT | Data |
| D6 | Relay Power Supply | Red Plug | IN | Power |
Serial communication port for computer flashing and telematics tracking modules.
| Pin # | Function | Wire Color | Type | Rating |
|---|---|---|---|---|
| I1 | 12V Power Feed | Black Port | OUT | Fused |
| I2 | System Ground | Black Port | IN | Ground |
| I3 | RS232 TX (Data Transmit) | Black Port | OUT | Serial |
| I4 | RS232 RX (Data Receive) | Black Port | IN | Serial |
Direct plug-and-play port for optional Fortin RF remote kits (1-Way & 2-Way).
| Pin # | Function | Wire Color | Type | Rating |
|---|---|---|---|---|
| H1 | 12V Antenna Power | Blue Port | OUT | 12V |
| H2 | RF Ground | Blue Port | IN | Ground |
| H3 | RF Data In (Remote Signal) | Blue Port | IN | Data |
| H4 | RF Data Out (LED Confirmation) | Blue Port | OUT | Data |
Plug for the programming switch used during vehicle key learning.
| Pin # | Function | Wire Color | Type | Rating |
|---|---|---|---|---|
| F1 | Programming Switch Ground | White Port | IN | - |
| F2 | Programming Sense Signal | White Port | IN | - |
Dedicated input connector for dual-zone security shock sensor.
| Pin # | Function | Wire Color | Type | Rating |
|---|---|---|---|---|
| G1 | Sensor 12V Power | White Port | OUT | 12V |
| G2 | Sensor Ground | White Port | IN | Ground |
| G3 | Warn-Away / Full Trigger In | White Port | IN | Trigger |
